Launch your custom phone case printing business the right way. This practical guide walks you through the complete installation of your phone case vending machine — from unboxing to your first successful test print.
Whether you're a shopping mall operator, event organizer, or wholesale distributor, proper setup ensures long-term performance and customer satisfaction.
Setting up your vending machine correctly is more than just plugging it in. A smooth installation ensures:
Stable power connection
Clean ink flow for vibrant prints
Accurate inventory and vending performance
Reduced downtime and fewer support issues
Now let’s dive into the step-by-step guide that’s helped hundreds of AMA Amusement clients worldwide.

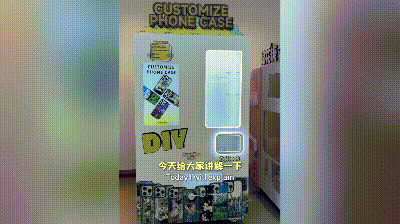

Visibility matters, especially in high-footfall areas.

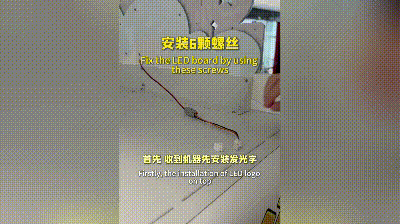

Align the LED signage with the top screw holes
Fasten with the six provided screws
Connect the LED wire to the internal power outlet
Pro tip: Power it on to confirm the lights are working properly before closing the top cover
Before switching on the machine:
Open the front door
Remove all transport ties, protective foams, and tape inside
Avoid pulling on any internal wires

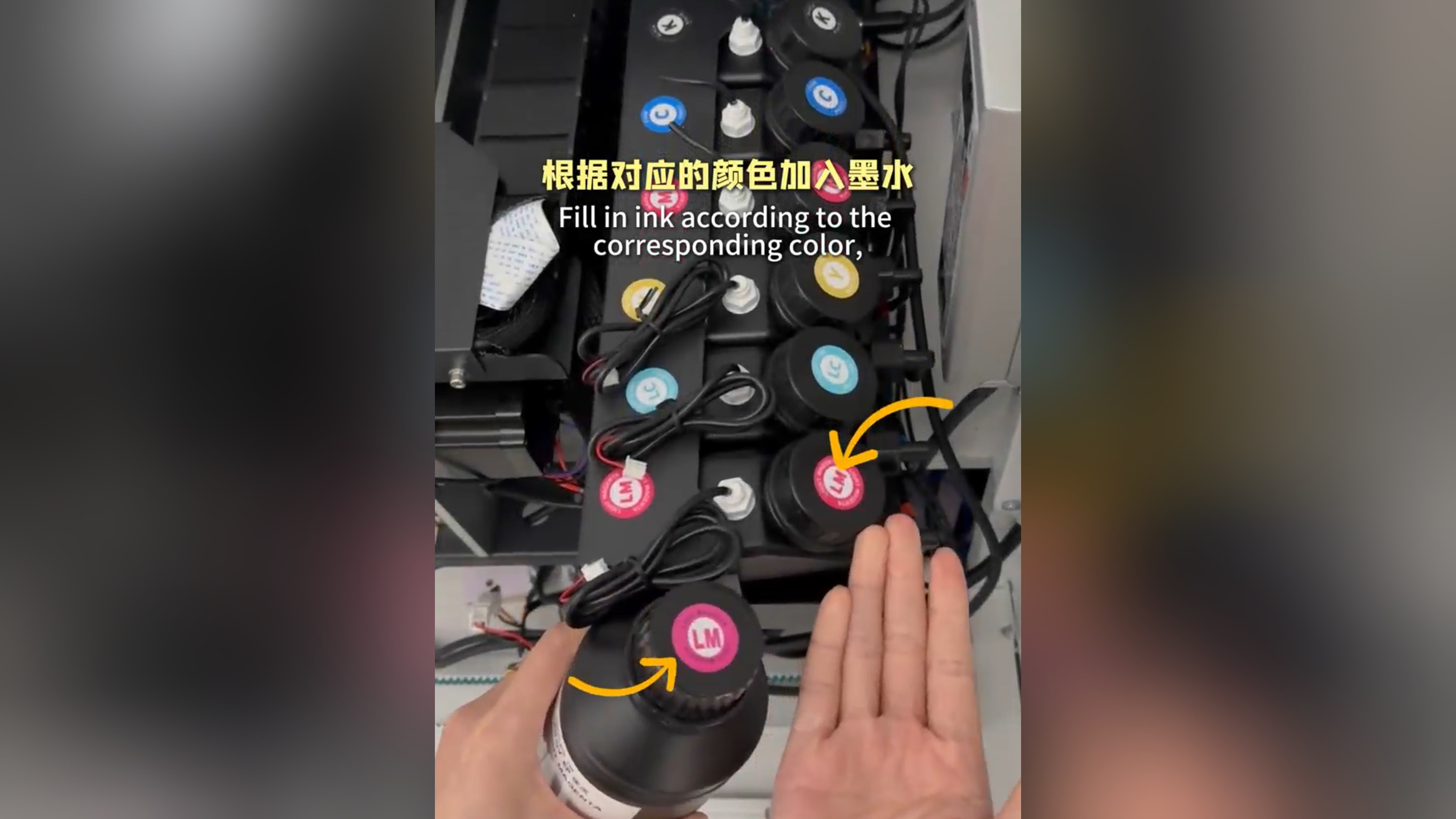

Your printer uses 6-color ink: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta
Match each bottle to its labeled tank
Slowly pour until you reach the MAX fill line
Avoid mixing or overfilling — this may damage the print head
Clean up any spills immediately

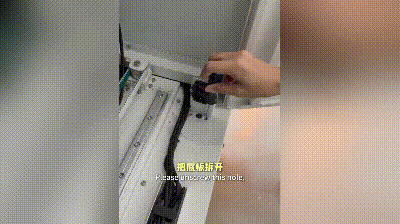

Remove the bottom panel
Guide the power cord through the base slot
Plug it into the machine’s internal socket
Reattach the panel and power the machine on
After startup:

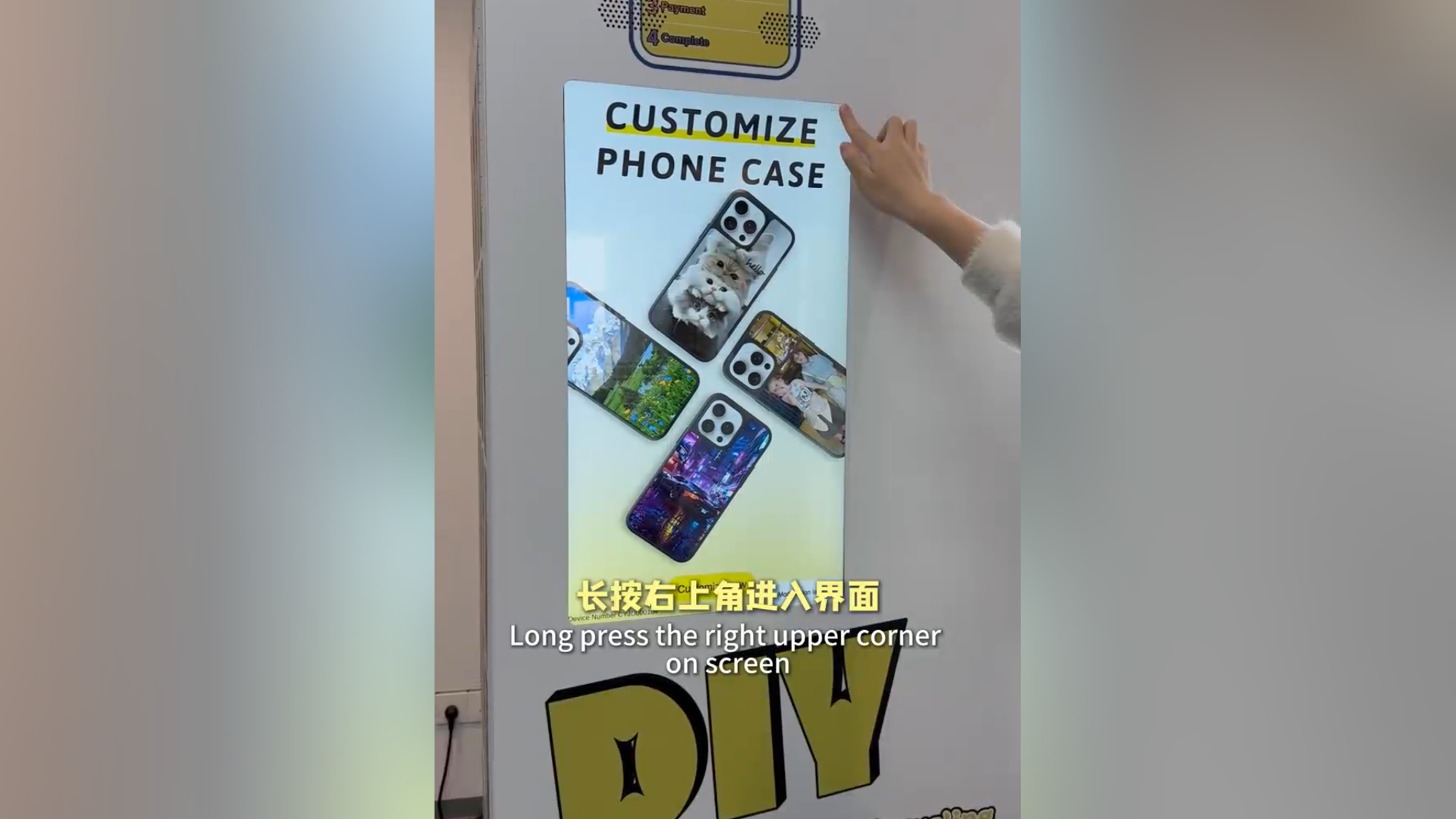

Long press the top-right corner of the touchscreen
Enter default password: 123456
Navigate to: Print Settings > Select Mode > Start > Wait 1 min > Stop
Then tap Cleaning Printer
Don’t forget: Update the password to protect backend settings.
Place a blank phone case on the print bed
Put an A5 sheet on top
Tap “Test”
You should see six colored bars — one for each ink
If any are missing: Clean the printer again, then retest
Scan the machine QR code or visit the web panel
Create an account and log in
Bind your machine serial number
Upload your design templates and start printing remotely

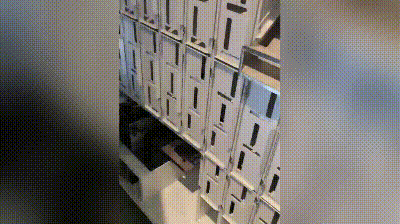

Use numbered storage bins to sort phone case models
Log each slot’s model type in the backend or app
Sync slot numbers with the inventory database
Well-organized storage = seamless vending experience for end users
Need visual help? Watch our full video installation guide here to follow along with each step.
AMA Amusement offers:
💼 OEM/ODM branding solutions
🧑💻 Remote technical support
🔧 1-year warranty on all vending machines
📦 Bulk order discounts for retailers and wholesalers
📩 Contact us today to get started or request a custom quote.
📁 Explore our full category of Phone Case Vending Machines
Q: Does the machine support Nayax or card readers?
A: Yes, it supports coin, bill, and Nayax cashless payments by default.
Q: Can I print on both plastic and leather phone cases?
A: Yes, but flat-surfaced phone cases with UV printing compatibility are recommended.
Q: Is the ink refillable?
A: Absolutely — you can purchase refills and perform regular maintenance yourself.
