Boxer Machine Installation Guide – Professional Step-by-Step Instructions

1. Introduction

Why Proper Installation Matters

Installing a boxer arcade machine correctly is essential for ensuring:

• Player safety

• Accurate scoring and sensor performance

• Long-term machine reliability

• Maximized revenue for FECs, arcades, bars, and entertainment centers

Whether you are a distributor, FEC operator, or arcade owner, this guide provides step-by-step instructions and practical tips for a professional setup.

2. Pre-Installation Checklist

Floor Space

• Ensure minimum 1–1.5 meters clearance in front and on both sides

Power Supply

• Compatible with 110–240V

• Use a stable outlet, preferably with surge protection

Tools & Team

• Screwdrivers, wrenches, Allen keys (usually included)

• Level to ensure stability

• At least 2 people recommended for heavy units

Inspection

• Verify all components: cabinet, punching bag, display, sensors, payment system

• Report any missing or damaged parts immediately

3. Step-by-Step Installation

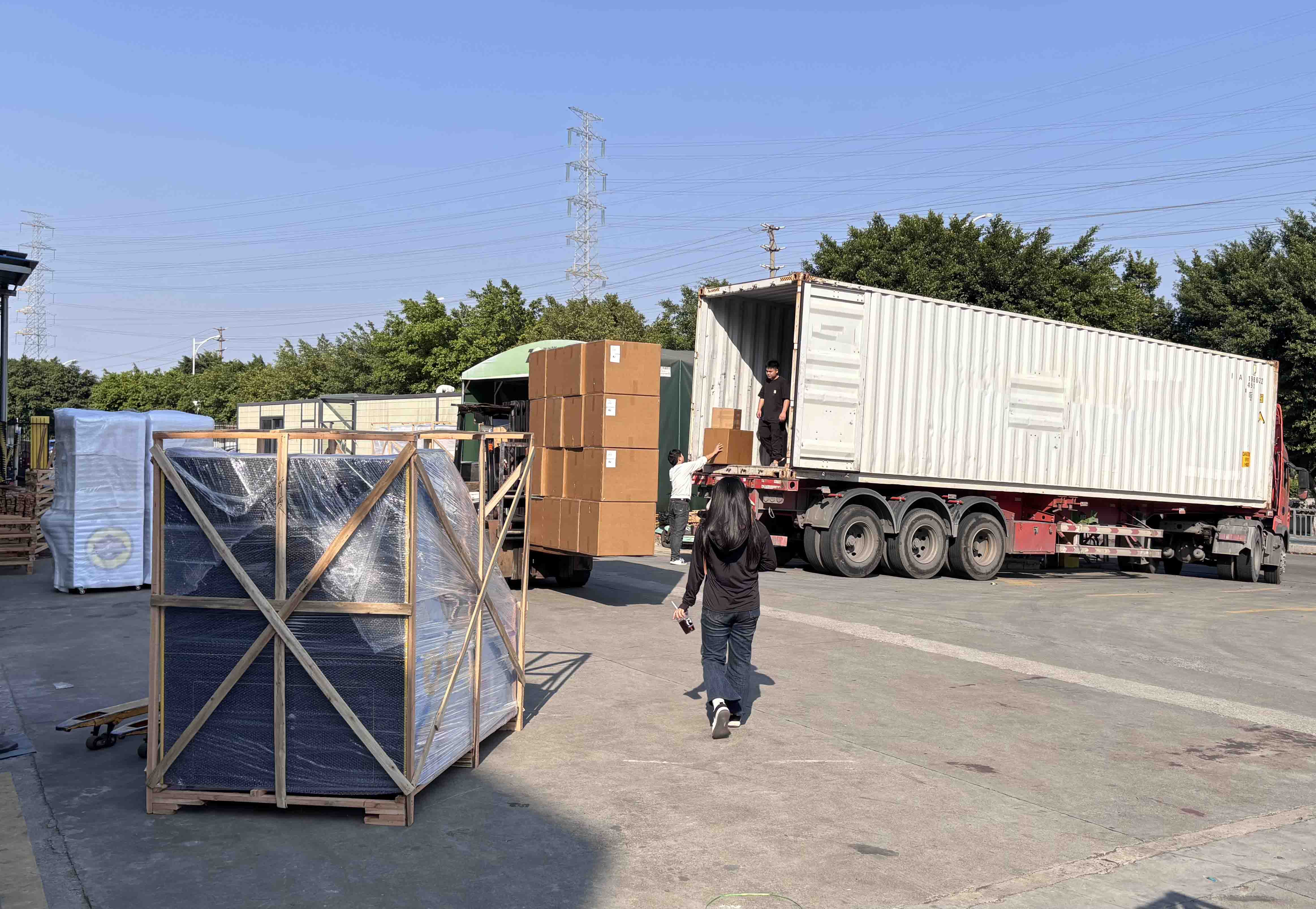

Step 1: Unboxing & Inspection

• Remove all packaging carefully

• Inspect all parts for damage or missing components

• Contact your supplier immediately if issues are found

Step 2: Positioning the Machine

• Place the machine in a high-traffic area for visibility

• Ensure enough space for safe gameplay

• Avoid moisture, direct sunlight, or unstable surfaces

Step 3: Leveling & Stabilization

• Use a level to ensure the machine is upright

• Adjust leveling feet as needed

• Check that the machine does not wobble

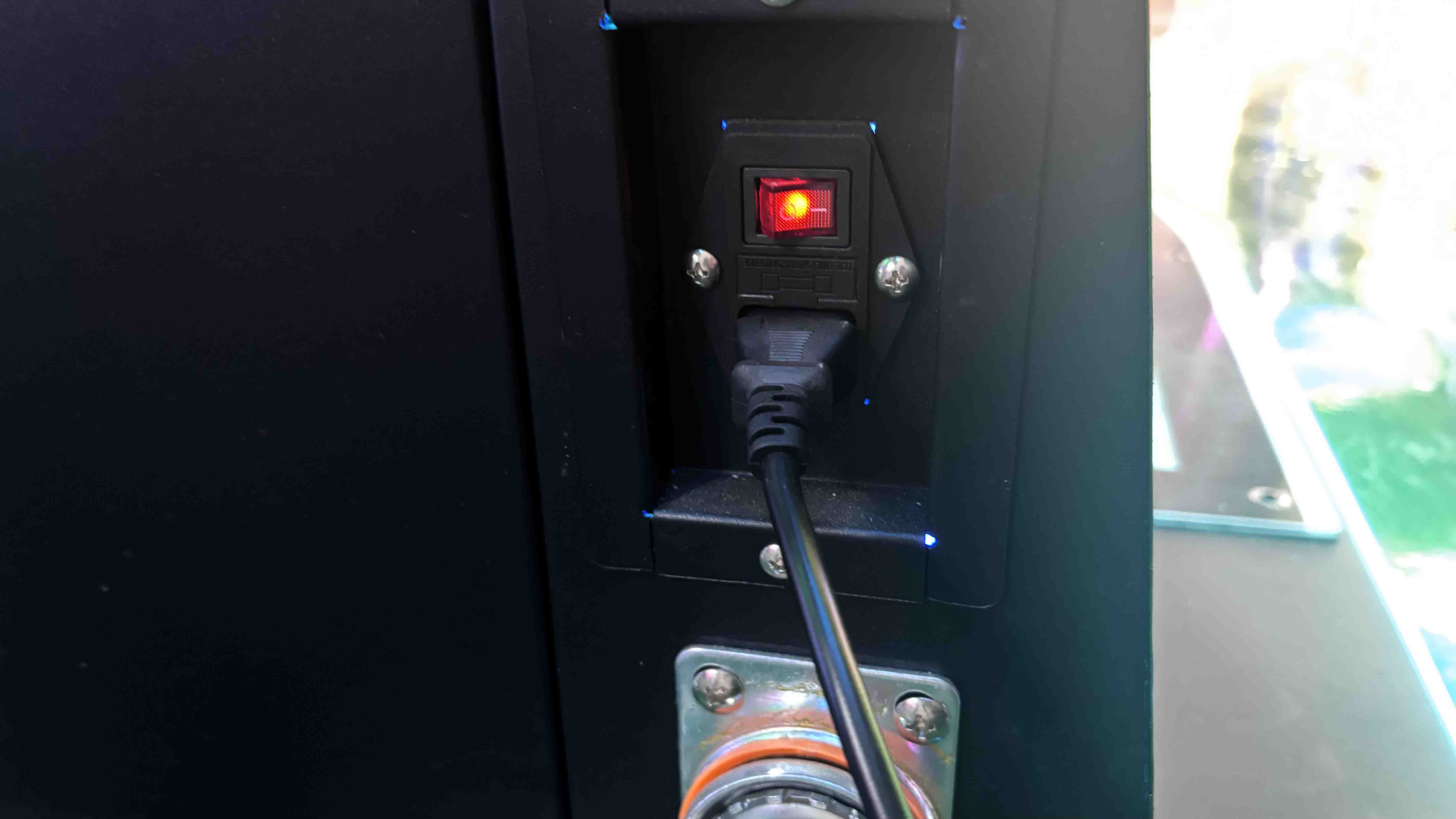

Step 4: Electrical Setup

• Connect to a compatible outlet (110–240V)

• Avoid using extension cords

• Turn on power and verify lights, display, and sensors are functioning

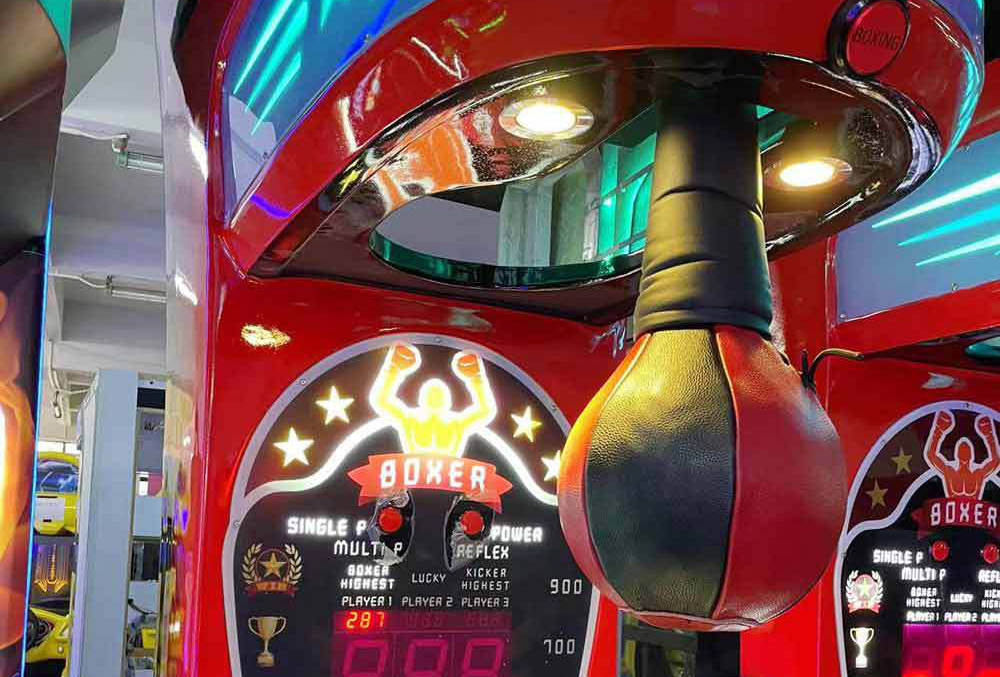

Step 5: Sensor Calibration

• Follow manufacturer instructions for sensor setup

• Test multiple punches to ensure consistent scoring

• Adjust sensitivity if required

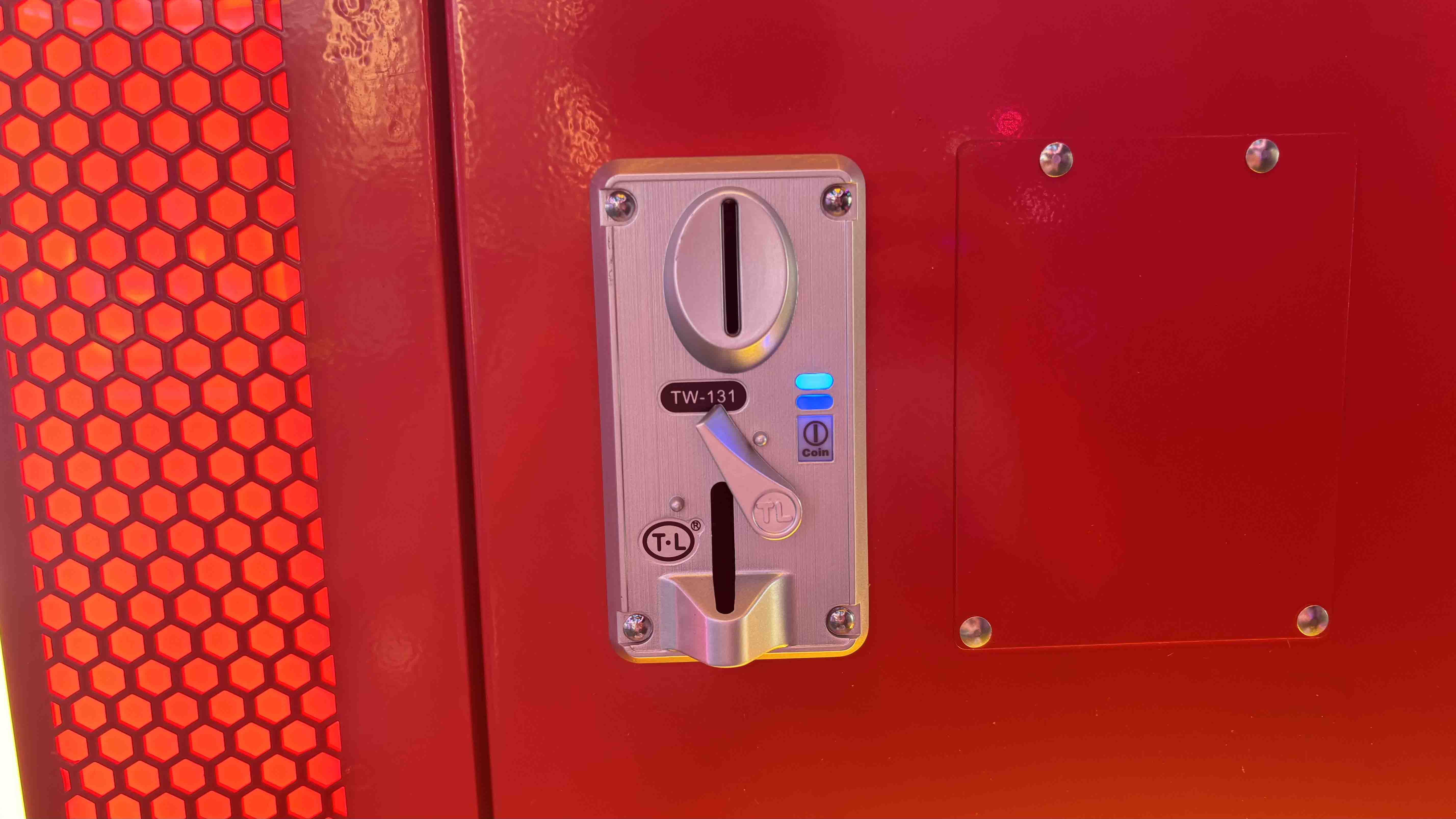

Step 6: Payment System Configuration

• Set up coin, bill, or digital payment systems like Nayax

• Test each payment option to confirm proper operation

• Verify transactions are logged correctly for revenue tracking

Step 7: Final Testing

• Run multiple test games

• Confirm scoring accuracy, display messages, LED, and sound effects

• Make minor adjustments if necessary

Boxer Arcade Machine Products

4. Common Installation Challenges & Solutions

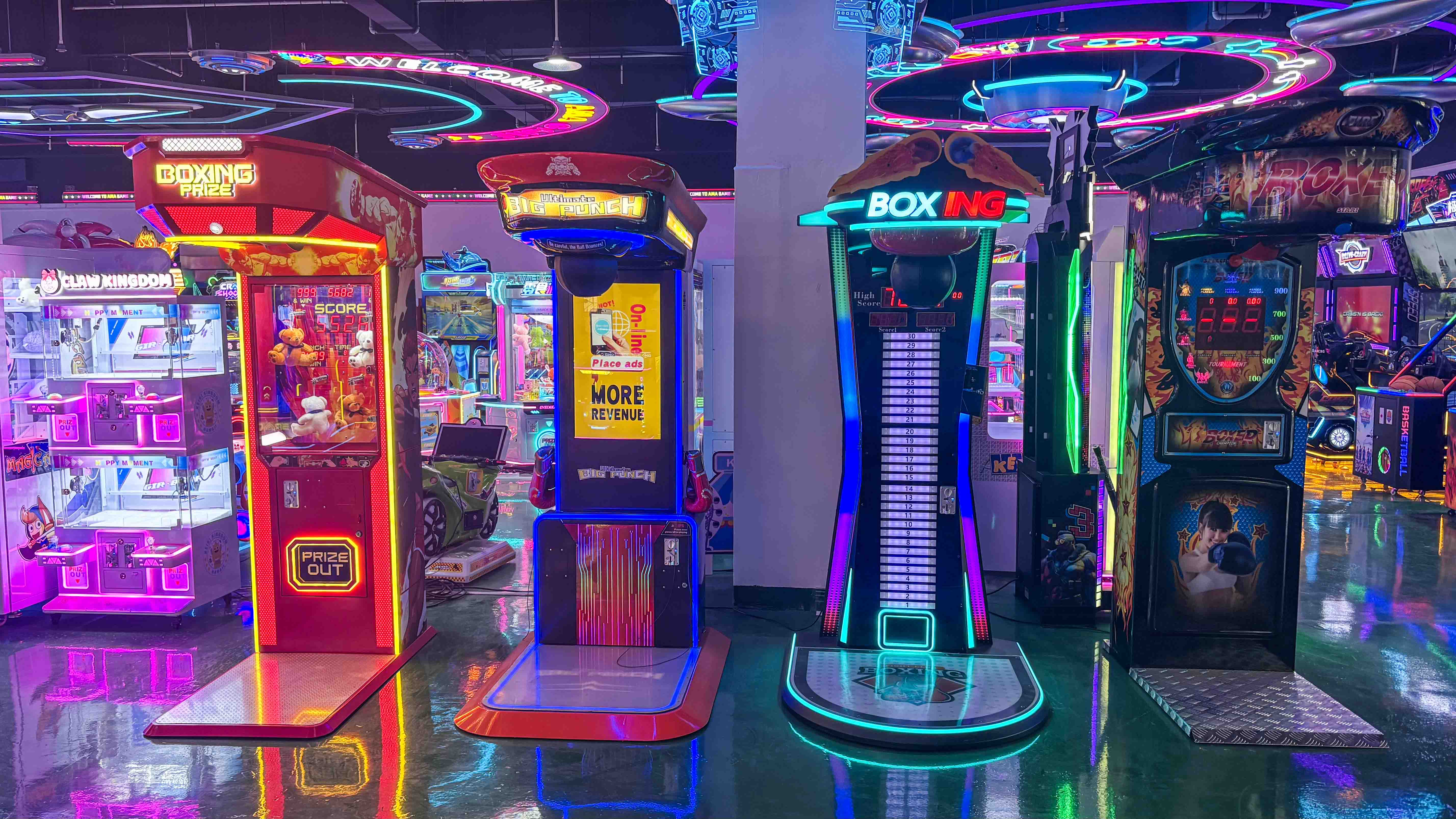

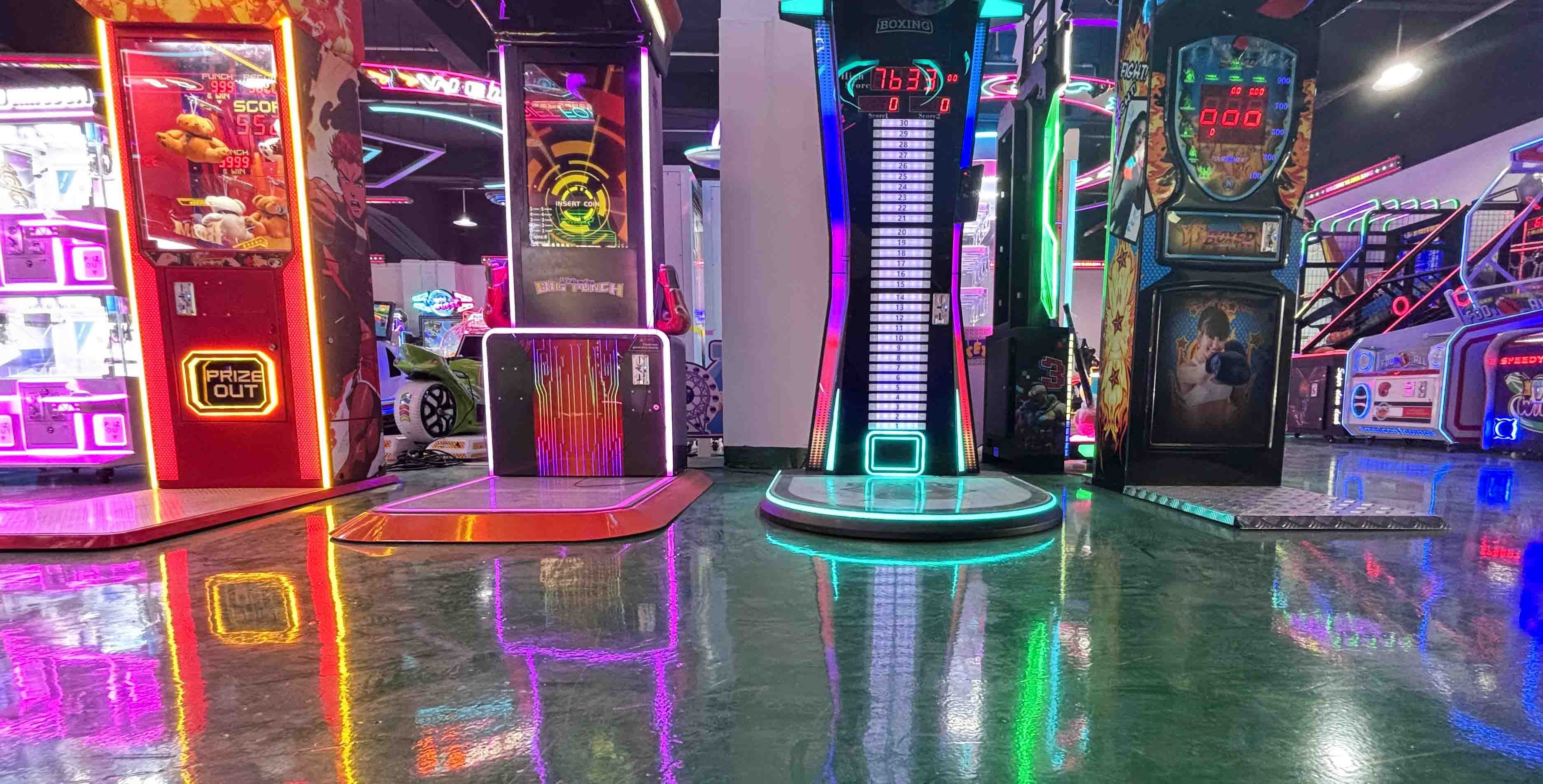

5. Space Planning Tips

• High-Traffic Areas: Near entrances or arcade zones for maximum visibility

• Avoid Congestion: Maintain clear walking paths for safety

• Complementary Placement: Pair with other arcade machines to increase dwell time

6. Safety Guidelines

• Secure all cables to prevent tripping hazards

• Supervise children during gameplay

• Inspect punching bag regularly for wear and tear

• Follow manufacturer-recommended maintenance schedule

 Boxer Machine Maintenance & Calibration

7. Installation ROI Considerations

• Proper installation ensures accurate scoring and reliable gameplay

• Safe and visible placement increases repeat plays and revenue

• Correct payment system setup improves cash flow and reduces downtime

Boxer Machine Profitability

8. AMA Amusement Installation Support

• 16+ years of arcade machine manufacturing experience

• Provides OEM/ODM installation instructions and support

• Step-by-step guidance for distributors globally
